Tomcat Hardening¶

Hide the Tomcat version in error responses and its error details:

To remove the Tomcat version, create the following file with empty parameters:

cd $CATALINA_HOME (where Tomcat binaries are installed)
mkdir -p ./lib/org/apache/catalina/util/
cat > ./lib/org/apache/catalina/util/ServerInfo.properties <<EOF
server.info=
server.number=
server.built=
EOF

Additionally add to server.xml the ErrorReportValve to disable showReport and showServerInfo. This is used to hide errors handled globally by tomcat in the host section.

vi ./conf/server.xml

Add to Host name=... section this new ErrorReportValve entry:

    <Host name="localhost"  appBase="webapps"
        unpackWARs="true" autoDeploy="true">

    ...

    <Valve className="org.apache.catalina.valves.ErrorReportValve" showReport="false" showServerInfo="false" />

    </Host>
  </Engine>
  </Service>
</Server>

Even though this is partial solution, it at least mitigates the visible eye-catcher of outdated software packages.

Response with just HTTP status confirms Tomcat is installed with no additional detail.
```
HTTP Status 400 – Bad Request
```

Notice: For support reason, the local output of version.sh still outputs the current version :

$CATALINA_HOME/bin/version.sh

...
Server version: Apache Tomcat/11.0.7
Server built:   May 7 2025 14:55:59 UTC
Server number:  11.0.7.0
...

Why hide verison number¶

Prior to performing the configuraiton steps above, the default full response includes the version number:

HTTP Status 400 – Bad Request
Type Status Report
Message Invalid URI
Description The server cannot or will not process the request due to something that is perceived to be a client error (e.g., malformed request syntax, invalid request message framing, or deceptive request routing).
Apache Tomcat/11.0.7.0

This response indicates this instance of Tomcat is from May 7 2025 (1 year old at the time of writing Apr. 2026).

An attacker can search for Tomcat version 11.0.7.0 to obtain a list of known vulnerabilities.

Running¶

Use your container application's method of starting and stopping webapps to run GeoServer.
To access the Web administration interface, open a browser and navigate to http://SERVER/geoserver .

For example, with Tomcat running on port 8080 on localhost, the URL would be http://localhost:8080/geoserver.
When you see the GeoServer Welcome page, GeoServer has been successfully installed.

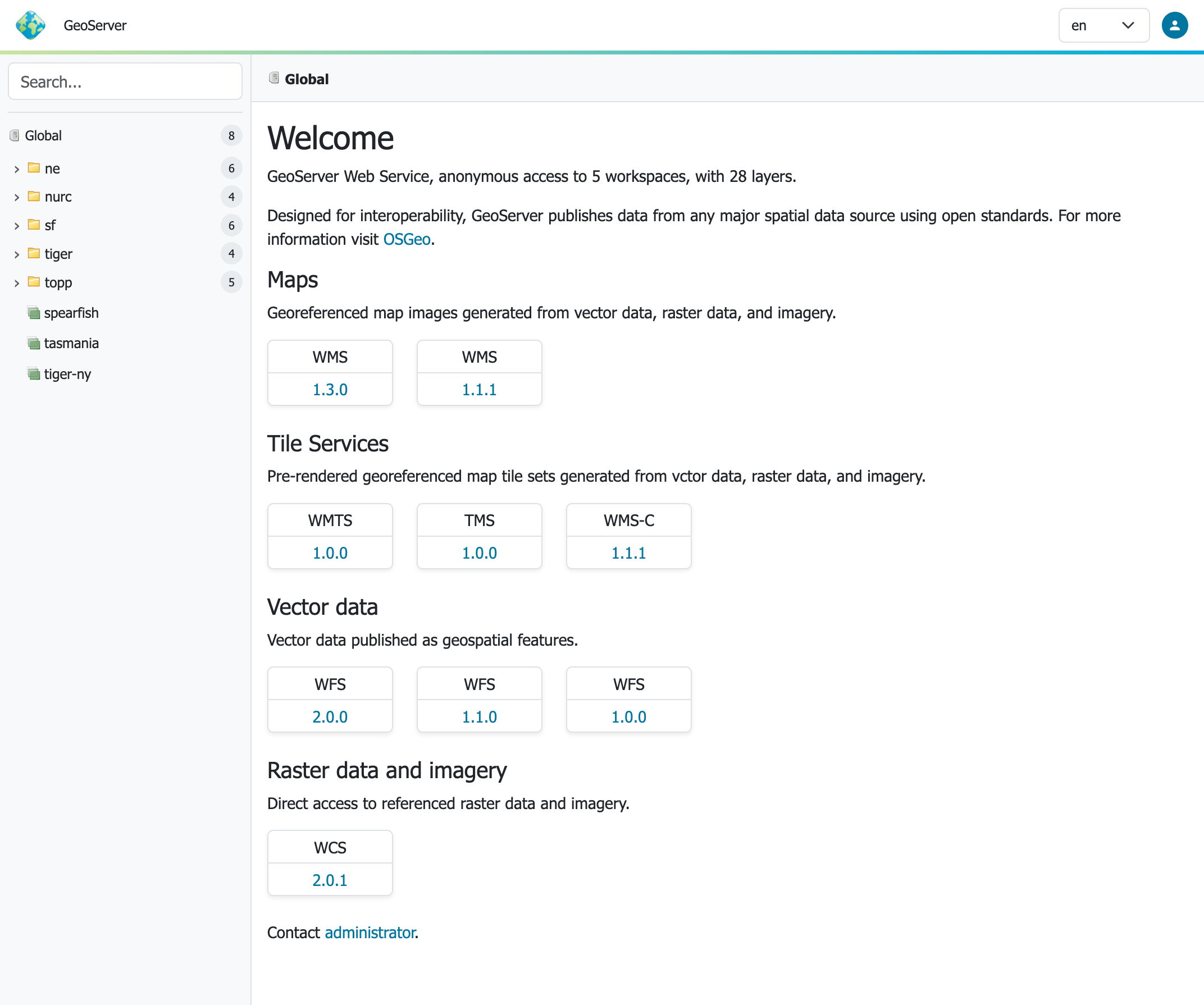

GeoServer Welcome Page

Update¶

Update GeoServer:

Backup any customizations you have made to webapps/geoserver/web.xml.

In general application properties should be configured using conf/Catalina/localhost/geoserver.xml rather than by modifying web.xml which is replaced each update.

Follow the Upgrading GeoServer to update geoserver.war.

Before you start, ensure you have moved your data directory to an external location not located inside the webapps/geoserver/data folder.
Be sure to stop the application server before deploying updated geoserver.war.

This is important as when Tomcat is running it will replace the entire webapps/geoserver folder, including any configuration in the default GEOSERVER_DATA_DIR geoserver/data folder location or customizations made to web.xml.
Re-apply any customizations you have made to webapps/geoserver/web.xml.

Update Tomcat:

Update regularly at least the container application, and repeat the hardening process.

This is a general problem, there are lots of visibly outdated Tomcat installations on the web.

Uninstallation¶

Stop the container application.
Remove the GeoServer webapp from the container application's webapps directory. This will usually include the geoserver.war file as well as a geoserver directory.

Remove conf/Catalina/localhost/geoserver.xml.
