Configure the GitHub authentication provider

The first thing to do is to configure the OAuth2 Provider and obtain Client ID and Client Secret keys.

Configure the GitHub IDP

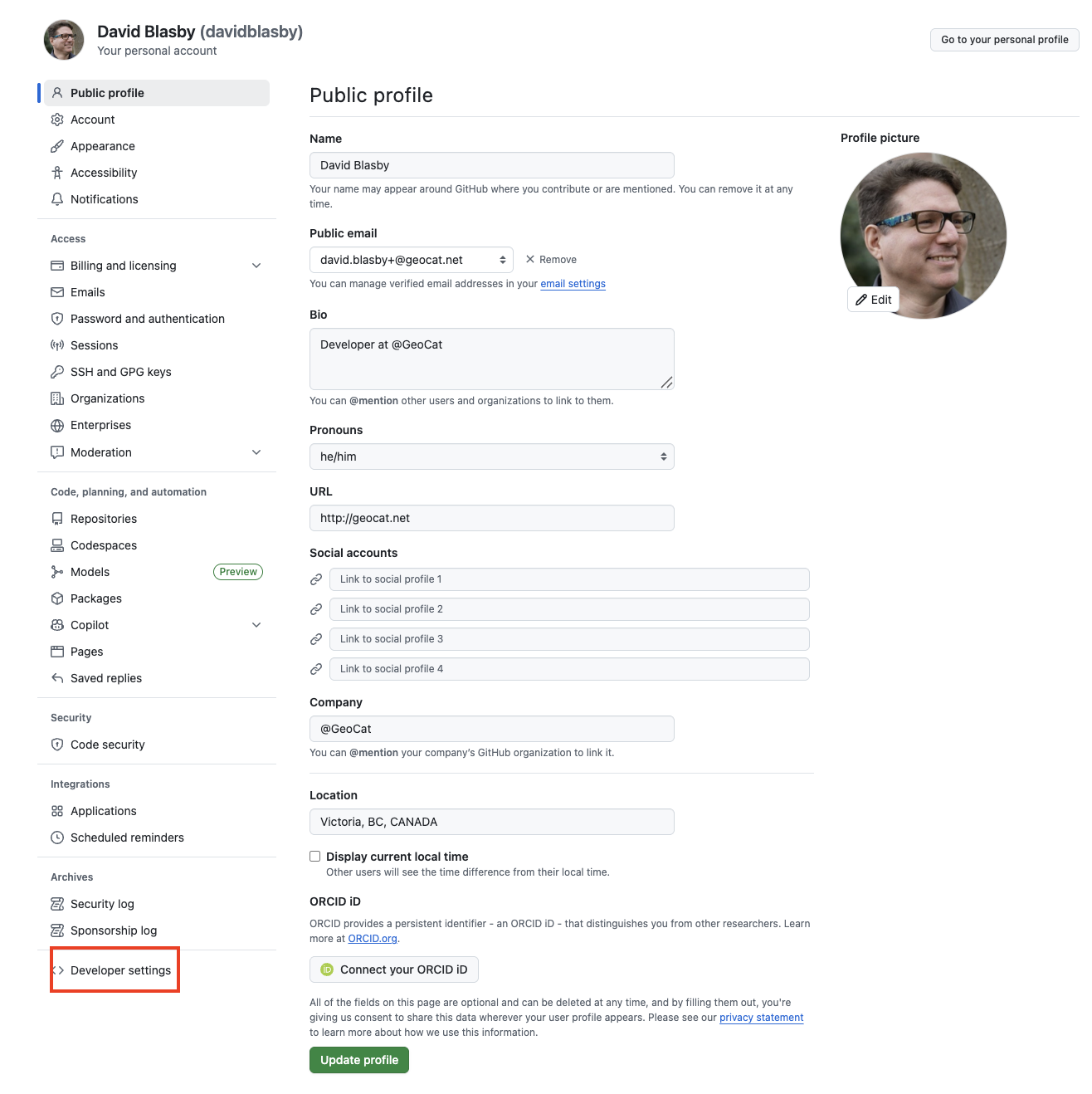

  1. Go to your GitHub settings

  2. At the very bottom of the left bar, click “<> Developer Settings”

    ../../../_images/github-dev-settings.png

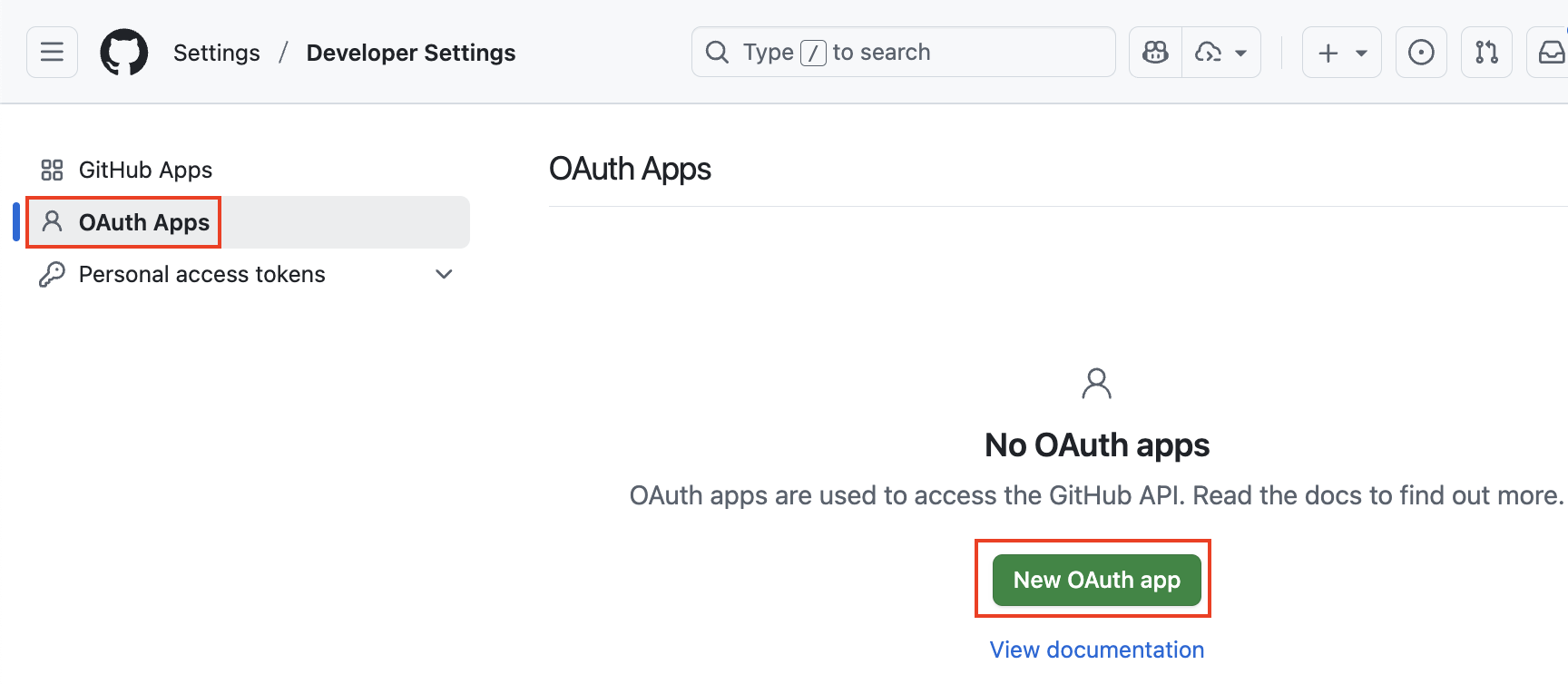

  3. On the left, press “OAuth Apps” and then “New OAuth app”

    ../../../_images/github-new-oauth2.png

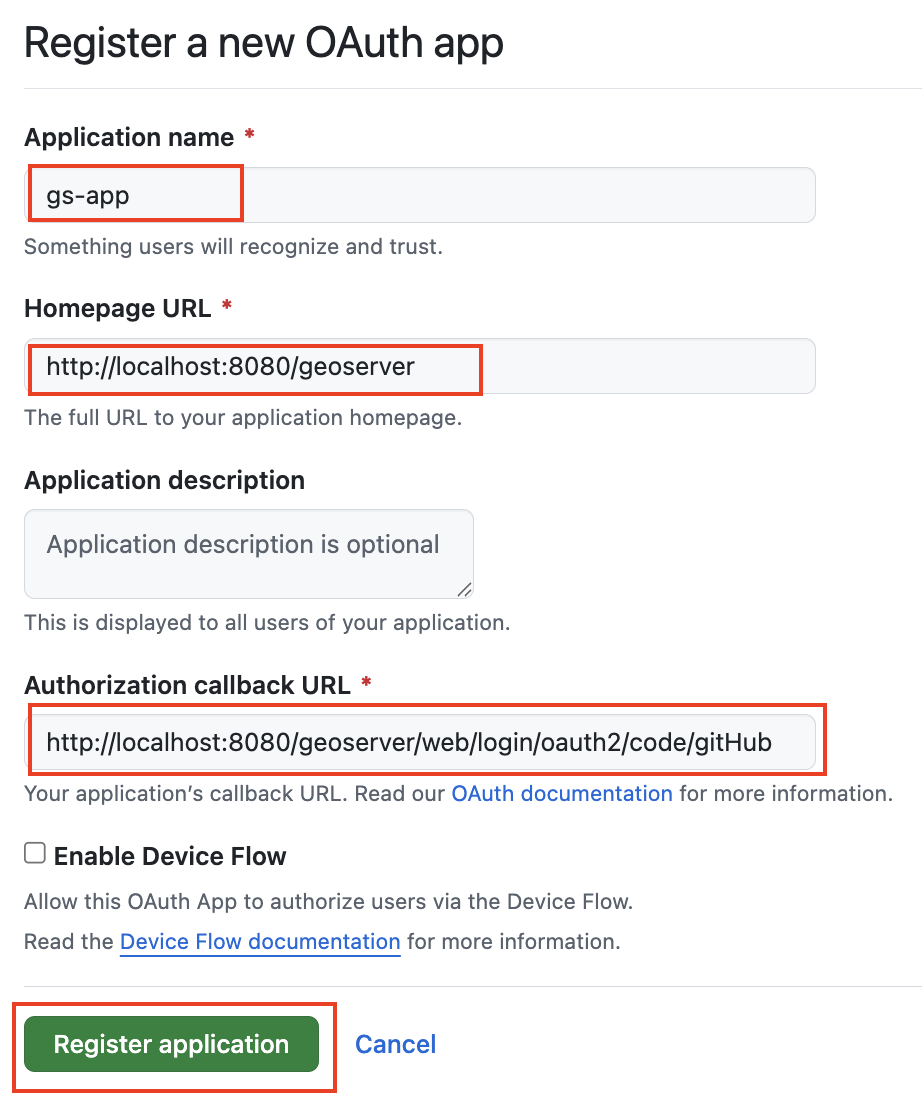

  4. Give the application:

    Tip

    The exact callback URL that GeoServer will use is shown as the read-only Redirect URI field in the filter configuration form. In production, use that value instead of localhost. See Redirect Base URI.

    ../../../_images/github-oauth2-app.png

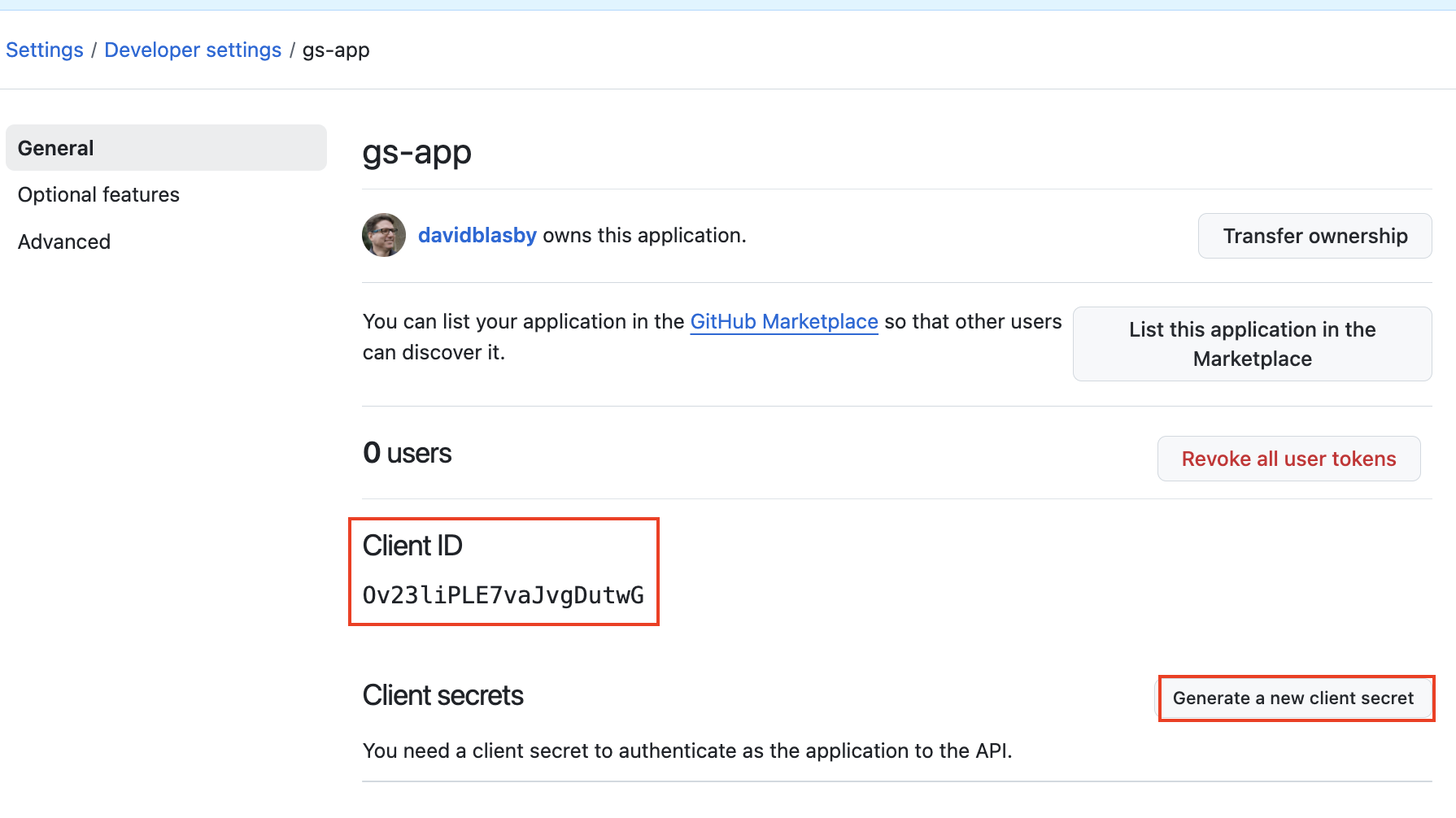

  5. You will be taken to the application page. Record the “Client ID” (you will need this in the GeoServer configuration)

    ../../../_images/github-app-created.png

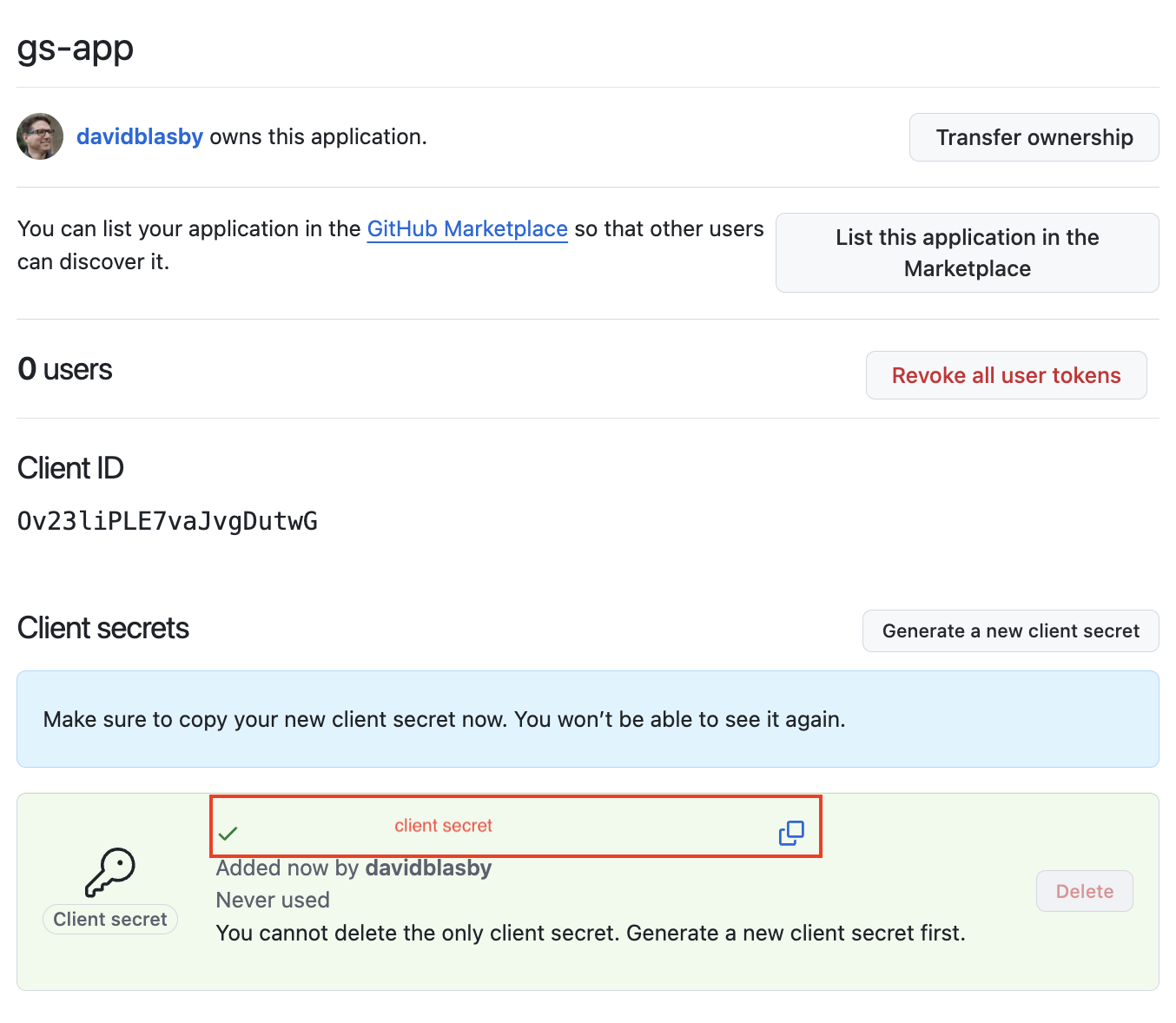

  6. Press “Generate a new client secret”

    ../../../_images/github-client-secret.png

  7. Record the client secret (you will need this in the GeoServer configuration)

  8. At the very bottom (scroll down), press “Update Application”

Configure GeoServer

The next step is to configure your Google application as the OIDC IDP for GeoServer.

Create the OIDC Filter

  • Login to GeoServer as an Admin

  • On the left bar under “Security”, click “Authentication”, and then “OpenID Connect Login”

    ../../../_images/google-gs1.png

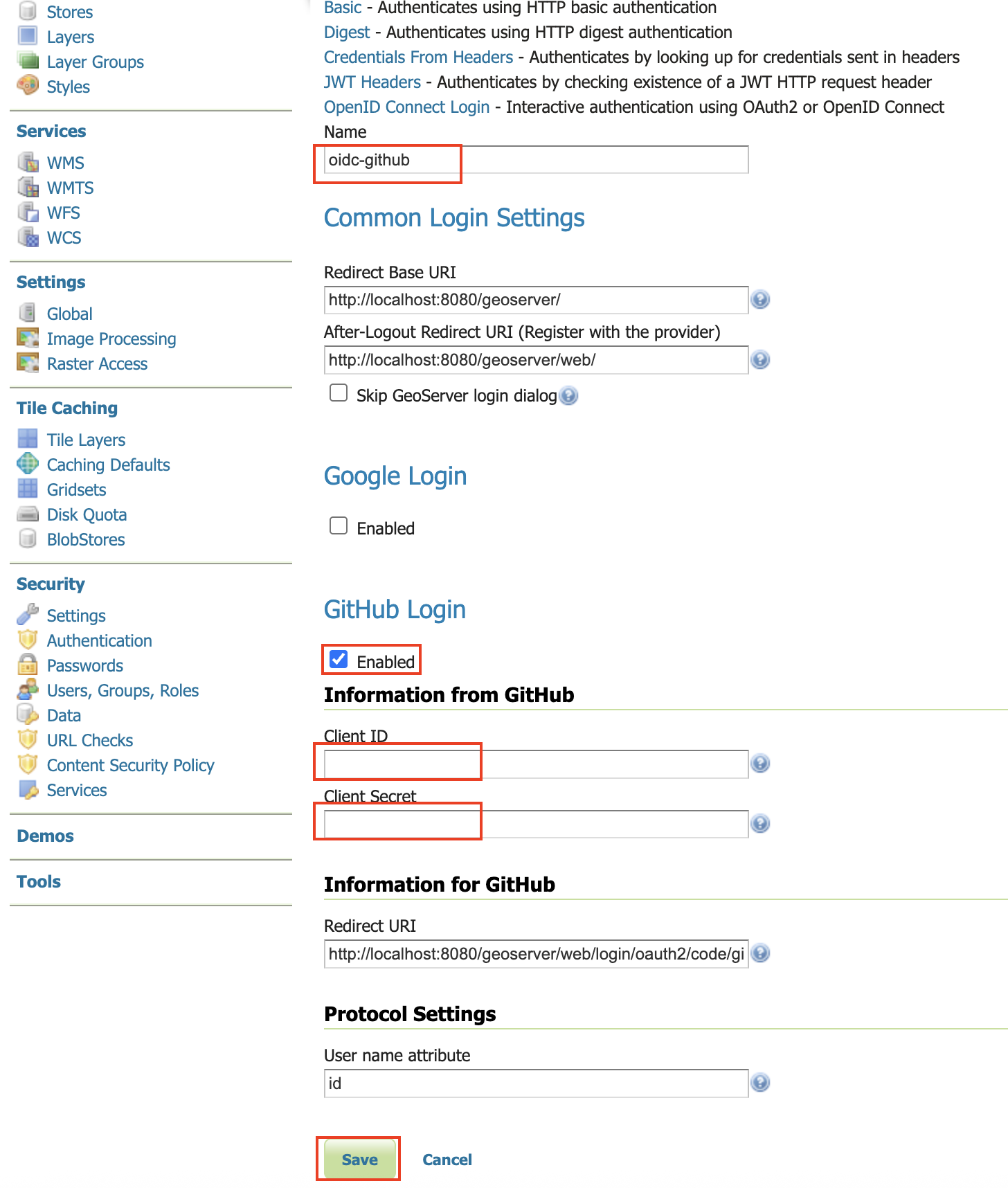

  • Give the it a name like “oidc-github”, then from the Provider dropdown select GitHub and copy-and-paste in the Client ID and Client Secret (from when you configured the github client).

    ../../../_images/github-gs1.png

  • Go down to the bottom and configure the role source (if you want) - see role source. NOTE: GitHub’s access token in Opaque (not a JWT) and it does NOT supply an ID Token (it is OAUTH2, not OIDC).

  • Press “Save”

Allow Web Access (Filter Chain)

  • On the left bar under “Security”, click “Authentication”, and then click “Web” under “Filter Chains”

    ../../../_images/google-filterchain1.png

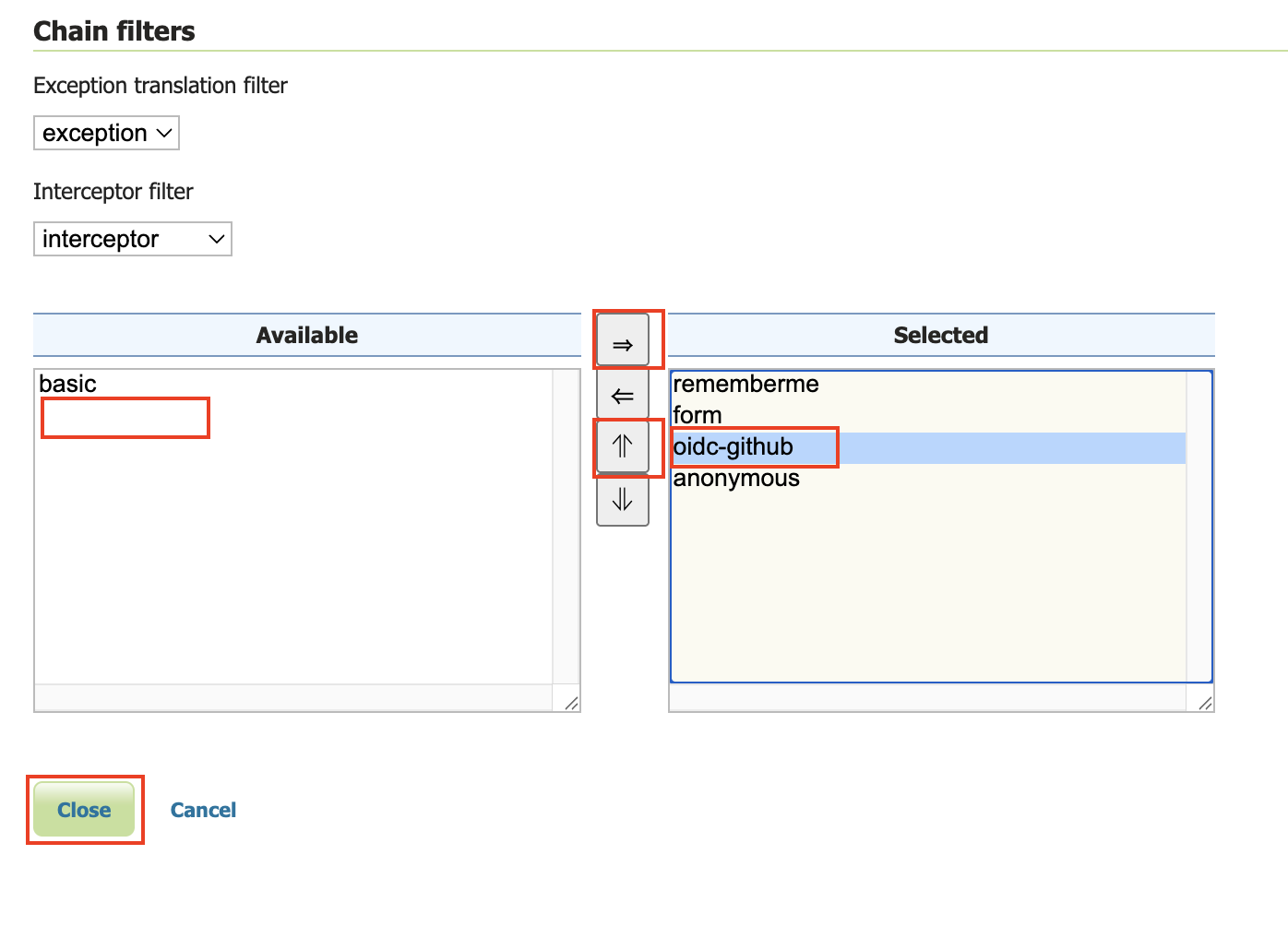

  • Scroll down, and move the new GitHub OIDC Filter to the Selected side by pressing the “->” button.

    ../../../_images/github-gs2.png

  • Move the new GitHub OIDC Filter above “anonymous” by pressing the up arrow button (See above diagram).

  • Press “Close”

  • Press “Save”

Notes

See troubleshooting.

  1. When you login, your username will be a number. For privacy reasons, GitHub does not usually include the email address of the user!

    ../../../_images/github-gs-loggedin.png

  2. GitHub’s Access Token is opaque, so configure roles

  3. GitHub is OAUTH2-only (not OIDC) so it does not have an ID Token

  4. GitHub does have userinfo

Example GitHub UserInfo:

{
    "login" : "davidblasby",
    "id" : 4893,
    "node_id" : "MDQ6VXNlcj",
    "avatar_url" : "https://avatars.githubusercontent.com/u/48937?v=4",
    "gravatar_id" : "",
    "url" : "https://api.github.com/users/davidblasby",
    "html_url" : "https://github.com/davidblasby",
    "followers_url" : "https://api.github.com/users/davidblasby/followers",
    "following_url" : "https://api.github.com/users/davidblasby/following{/other_user}",
    "gists_url" : "https://api.github.com/users/davidblasby/gists{/gist_id}",
    "starred_url" : "https://api.github.com/users/davidblasby/starred{/owner}{/repo}",
    "subscriptions_url" : "https://api.github.com/users/davidblasby/subscriptions",
    "organizations_url" : "https://api.github.com/users/davidblasby/orgs",
    "repos_url" : "https://api.github.com/users/davidblasby/repos",
    "events_url" : "https://api.github.com/users/davidblasby/events{/privacy}",
    "received_events_url" : "https://api.github.com/users/davidblasby/received_events",
    "type" : "User",
    "user_view_type" : "private",
    "site_admin" : false,
    "name" : "David Blasby",
    "company" : "@GeoCat",
    "blog" : "http://geocat.net",
    "location" : "BC, CANADA",
    "email" : "david.blasby+@geocat.net",
    "hireable" : null,
    "bio" : "Developer at @GeoCat",
    "twitter_username" : null,
    "notification_email" : "david.blasby+@geocat.net",
    "public_repos" : 23,
    "public_gists" : 0,
    "followers" : 4,
    "following" : 0,
    "created_at" : "2019-03-26T04:03:17Z",
    "updated_at" : "2025-10-01T18:36:02Z",
    "private_gists" : 0,
    "total_private_repos" : 0,
    "owned_private_repos" : 0,
    "disk_usage" : 2095,
    "collaborators" : 0,
    "two_factor_authentication" : true,
    "plan" : {
        "name" : "free",
        "space" : 97656,
        "collaborators" : 0,
        "private_repos" : 10000
    }
}
