OAUTH2/OIDC configuration¶
Extracting Roles from the OIDC IDP¶
The oidc module allows for providing user roles with the standard GeoServer role providers. It also adds four new ones: ID Token, Access Token, UserInfo, and Microsoft Graph.
Name |
Meaning |
|---|---|
ID Token |
The ID token is an OIDC specific JWT token that contains signed claims from the OIDC IDP. These claims can be used for GeoServer roles (see below). This is the recommended place to get roles from. |
Access Token |
The Access Token is a OAUTH2 token that is also present in OIDC. Typically, one should not be looking inside the Access Token, however, if your provider’s access token is a JWT, then you can use it extract claims. This is not the recommended method of getting roles, but is provided as an option. |
UserInfo |
The OIDC specification provides a UserInfo endpoint that accepts an Access Token and returns a JSON document with claims about the user. This is recommended only if the ID Token doesn’t contain the claims to get roles from. |
Microsoft Graph |
Microsoft Graph is a Microsoft product for use with their cloud IDP. Only use this if you are using a Microsoft product like Microsoft Entra ID (formerly Azure AD). |
Role Configuration Overview¶

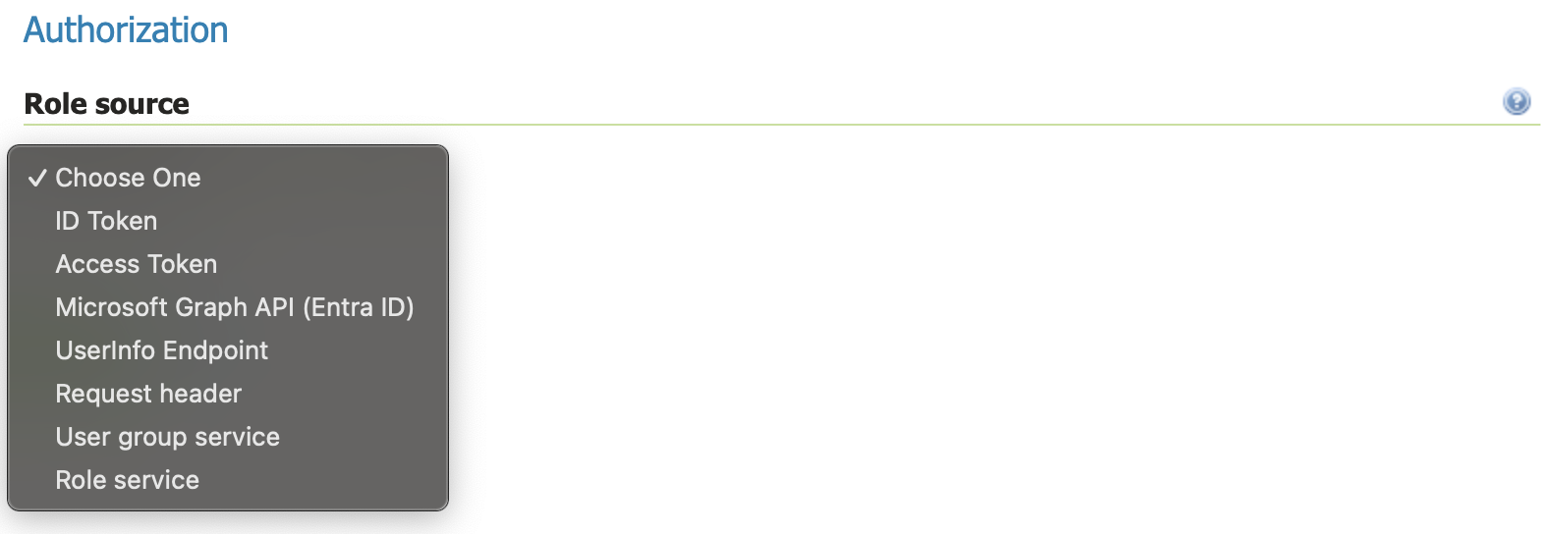

Choose a role source - typically ID Token, but can also be Access Token or UserInfo.

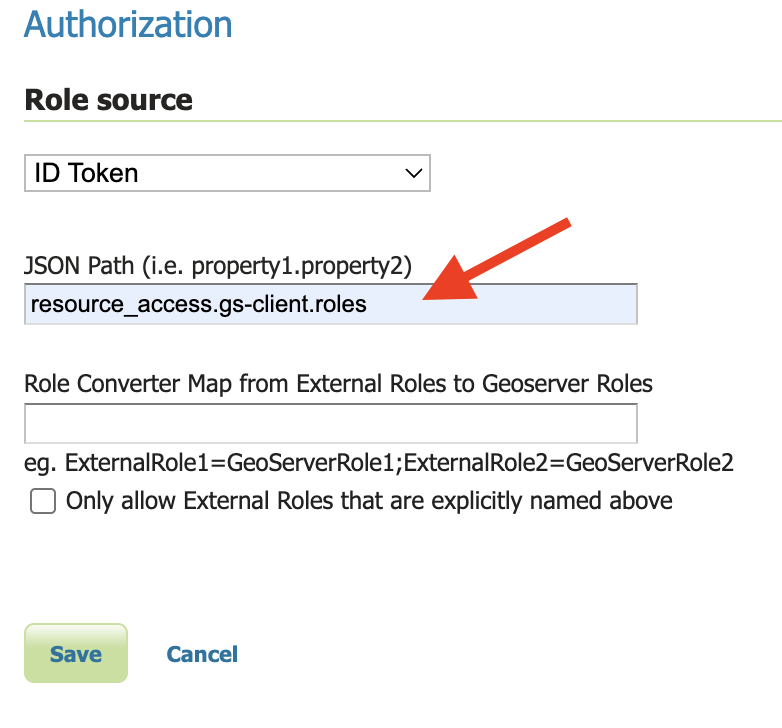

Set the JSON Path to point to where in the Token/UserInfo you want to extract a set of external IDP roles
Set the Role Converter Map so it converts the IDP’s roles to GeoServer roles.
Configuring Roles from the ID Token, Access Token, or UserInfo¶
The basis of the ID Token, Access Token, and UserInfo is a JSON document with information about the user.
Here is an example of a Keycloak ID Token:
{
"exp": 1708555947,
"iat": 1708555647,
"auth_time": 1708555288,
"jti": "42ee833e-89d3-4779-bd9d-06b979329c9f",
"iss": "http://localhost:7777/realms/dave-test2",
"aud": "live-key2",
"sub": "98cfe060-f980-4a05-8612-6c609219ffe9",
"typ": "ID",
"azp": "live-key2",
"nonce": "4PhqmZSJ355KBtJPbAP_PdwqiLnc7B1lA2SGpB0zXr4",
"session_state": "7712b364-339a-4053-ae0c-7d3adfca9005",
"at_hash": "2Tyw8q4ZMewuYrD38alCug",
"acr": "0",
"sid": "7712b364-339a-4053-ae0c-7d3adfca9005",
"upn": "david.blasby@geocat.net",
"resource_access": {
"live-key2": {
"roles":
[
"GeonetworkAdmin",
"GeoserverAdmin"
]
}
},
"email_verified": false,
"address": { },
"name": "david blasby",
"groups": ["default-roles-dave-test2", "offline_access", "uma_authorization"],
"preferred_username": "david.blasby@geocat.net",
"given_name": "david",
"family_name": "blasby",
"email": "david.blasby@geocat.net"
}
Many IDPs (including Keycloak) form the ID Token, Access Token (JWT), and UserInfo in a similar format.
In this token’s JSON claims, notice this part:
"resource_access": {
"live-key2": {
"roles":
[
"GeonetworkAdmin",
"GeoserverAdmin"
]
}
}
We would, therefore, specify the JSON Path to resource_access.live-key2.roles to get the two external IDP roles (”GeonetworkAdminr”, and “GeoserverAdmin”). In keycloak, the JSON path will be of the form resource_access.<client name>.roles. Other OIDC IDPs will put the roles in a different location.
Access Token¶
If you choose the Access Token as your role source, you can also use scope for the JSON path. This will look at the OIDC IDP’s code response to see what scopes are available.
For very advanced users (not recommended - only do this if your IDP uses this mechanism), you can also extract other parts from the code response. This is only provided to help with opaque (non-JWT) Access Tokens. Here is what a typical code response looks like:
{
"access_token": "....",
"token_type": "Bearer",
"refresh_token": "...",
"expires_in": 3600,
"id_token": "..."
}
Both of these techniques are advanced - and should only be used if you must use the Access Token and the Access Token is not a JWT.
Configuring Microsoft Graph¶
TODO
External-Internal Role Translation¶
The oidc module provides an easy what to convert the name of an external IDP’s role to a local GeoServer role.
In this example, the OIDC IDP will return a geoserverAdmin role (see ID Token example, above). You can configure GeoServer to understand what this means, however, this can be complex. Instead this defines a very simple translation from the role in the ID Token (External Role Name) to an internal GeoServer role name.

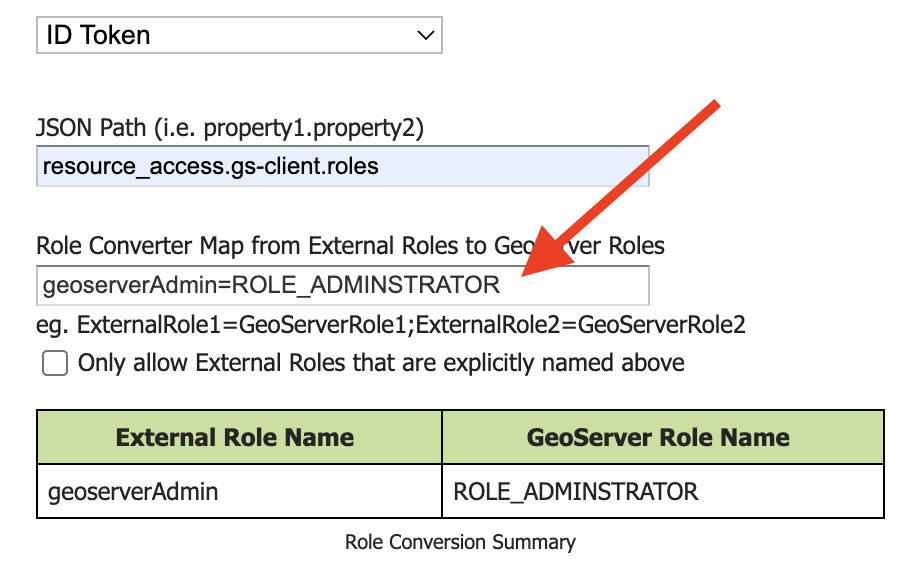

In this example we are converting the IDP’s geoserverAdmin role to ROLE_ADMINISTRATOR.
You can specify multiple translations separated by the “;” character.
If you turn on the “Only allow External Roles that are explicitly named above”, then roles that are not mentioned in the Role Converter Map will not be in the set of GeoServer roles. For example, in the example ID Token, the user has role “geoserverAdmin” and “geonetworkAdmin”. If this is not turned on, then the user will have the GeoServer roles “ROLE_ADMINISTRATOR” (translated from “geoserverAdmin”) as well as “geonetworkAdmin”. If it is turned on, then they will only have the “ROLE_ADMINISTRATOR” (translated from “geoserverAdmin”) role.
